Mikrotik: DHCP with Radius

Associate a permanent IP to a client

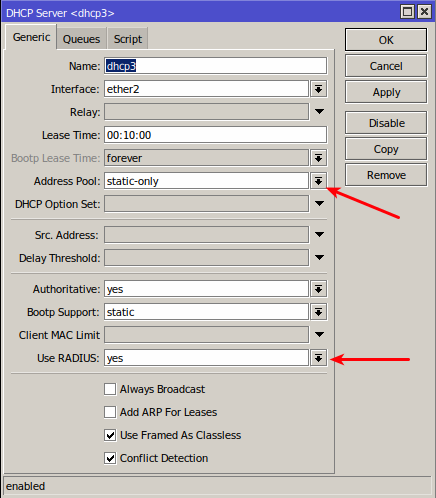

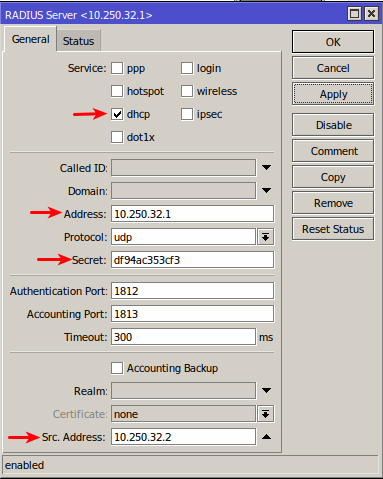

To configure the Splynx Radius Server with the DHCP service you should have a DHCP server configured on the interface of your router. Select your DHCP server and make sure you have the option "Use RADIUS" flagged. Also, make sure you have selected in the Address pool "static only" (the DHCP is going to get the IP from the Splynx RADIUS server).

DHCP config

To configure the Splynx Radius Server, navigate to Networking → Routers → List, select the router where you have configured your dhcp service, click on the "Authorization/Accounting" window and select DHCP (Radius)/ API accounting).

Radius view

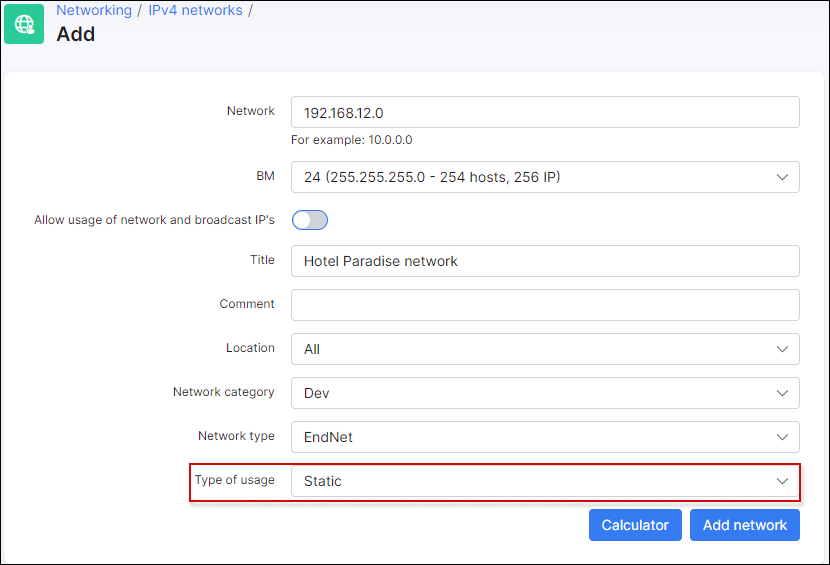

Click on IPv4 Networks → Add and create the network you want to use with the DHCP service. Don't forget to select Static in the Type of usage.

Subnet

Click on Customers → List, select a customer and click on the Services tab. Now you can add a new service, just click on the "+" button.

Customers

When you add the service, you should pay special attention to the following three fields:

  • Router - select the router that is used with the dhcp service

  • Taking IPv4 - select Permanent IP ( from static IPs)

  • IPv4 - IP address you want to assign to the customer

  • MAC (s) - MAC address of the customer

Create service

Please note, even with AAA enabled on a Mikrotik router, it does not send DHCP statistics. In order to get statistics, you should enable an API on the Splynx Radius server.

Navigate to Networking → List, and select the router where you have configured your dhcp service. Click on the Mikrotik tab, Enable API and insert a login and password of an administrator (be sure that the administrator is created on the router as well).

Mikrotik API

Associate more than one MAC Address to a customer

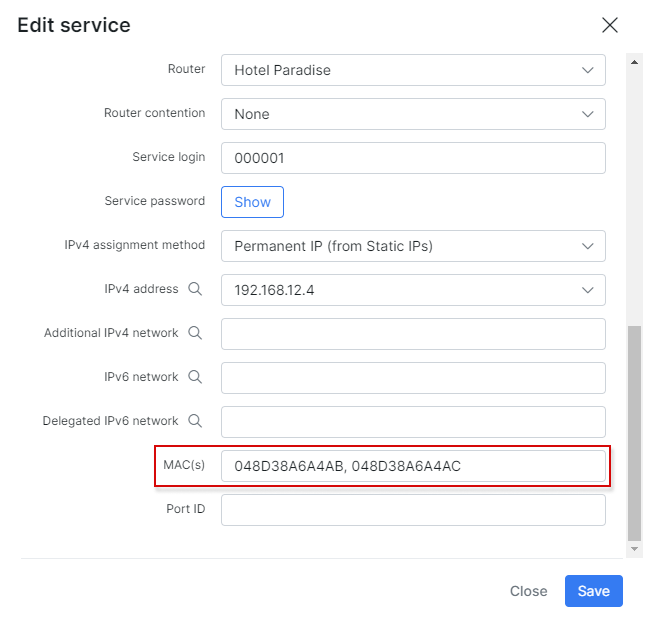

To associate more than one MAC address to a customer, it is necessary to create a new service, with a new MAC address, and set the price to 0 to ensure that the customer will not be charged twice.

Internet Services

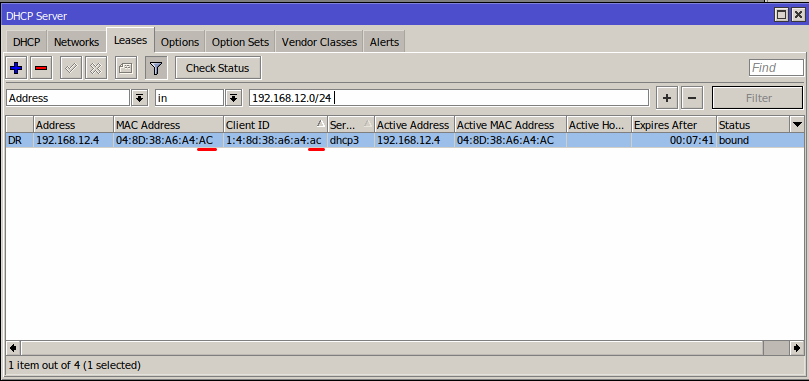

As you can see from the screenshot, the DHCP service is going to release a second IP associated to a different MAC address.

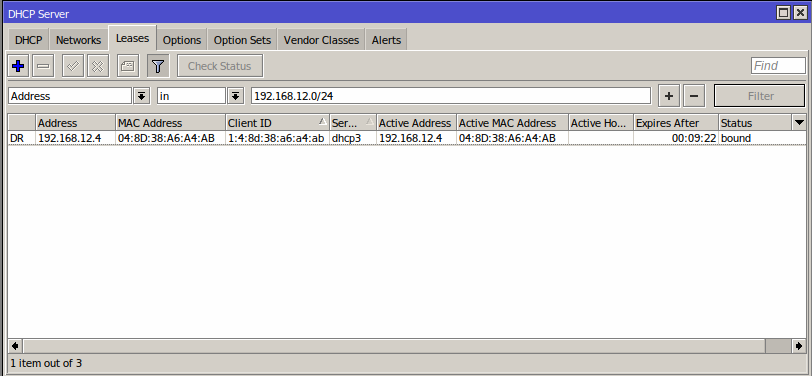

Leases

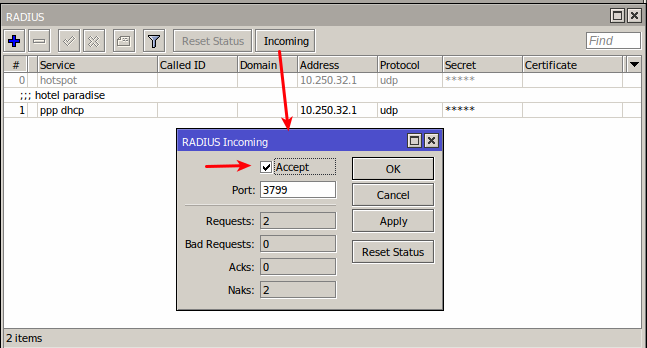

In Splynx, we have the ability to block a permanent IP address assigned from the DHCP service through an API. To block a permanent IP, navigate to Networking → Routers → List, select the router where you configured your dhcp service, click on the Mikrotik tab and enable the "Disabled customer to Address-List" option. Navigate to the respective customer and change the Customer's Status to Blocked.

Disabled customers to Address-List

Customer

The user will be blocked and their internet traffic will be redirected to a Reject IP for blocked users defined in Config → Networking → Radius.

RejectIP

Associate a dynamic IP to a customer.

We do not recommend the use of this setup.

To configure the Splynx Radius Server with the DHCP service, you should have a DHCP server configured on the interface of your router. Select your DHCP server and make sure you have the option "Use RADIUS" flagged. In the Address pool, you have to select "Static only" (DHCP will get an IP from the Splynx RADIUS server). DHCP

To configure the Splynx Radius Server, navigate to Networking → Routers → List, select the router where you have configured your dhcp service, click on the Authorization/Accounting drop-down menu and select the DHCP (Radius)/ API accounting option.

Authorization/Accounting

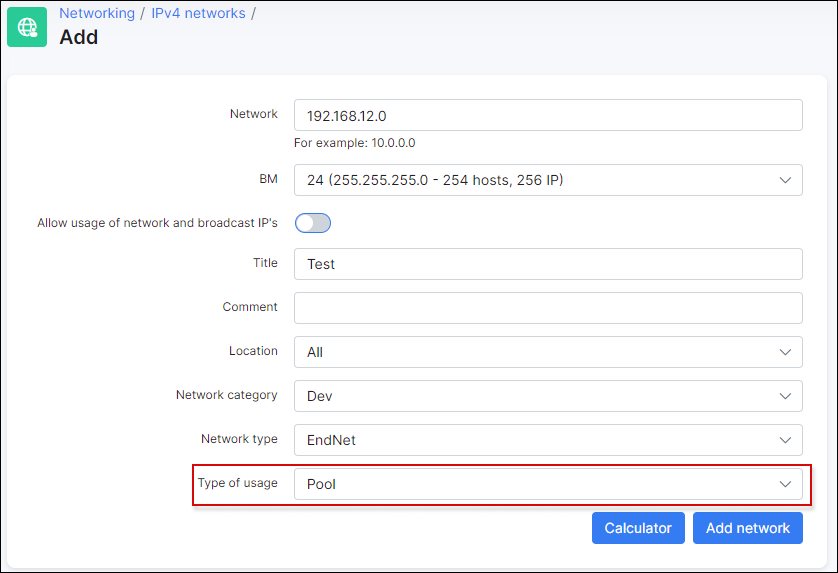

Thereafter, navigate to IPv4 Networks → Add and create the network you want to use with the dhcp service. Don't forget to select Pool in the Type of usage.

TypeOfUsage

Finally, you can navigate to Customers → List, select a customer and click on the Services tab to add a new service, simply click on the "+" button.

Add service

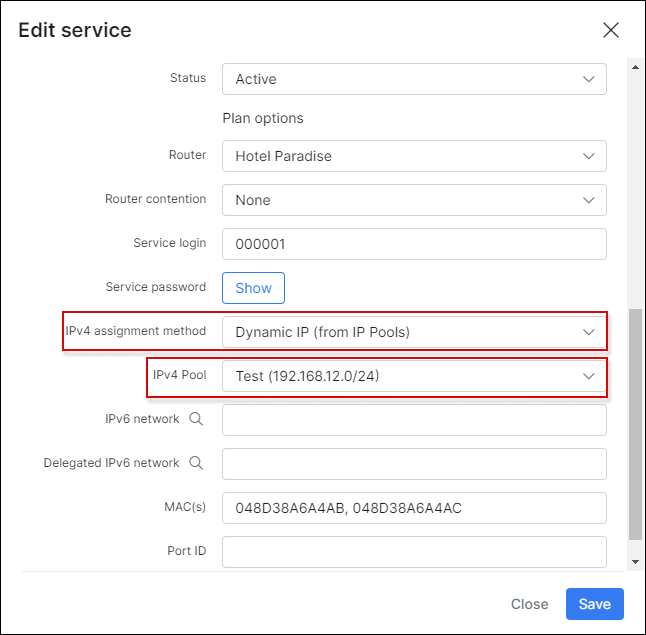

When you add the service, you should pay special attention to the following three fields:

  • Router - select the router that is used with the dhcp service

  • Taking IPv4 - select Dynamic IP (from IP Pools)

  • IPv4 pool - the IP pool you want to use to assign an IP to the customer from

  • MAC(s) -MAC address of the customer

IP from pool

It is possible to get statistics from the DHCP dynamic assignments. Navigate to Config / Networking / Radius extended_and enable the DHCP (Add customer to online after login) option.

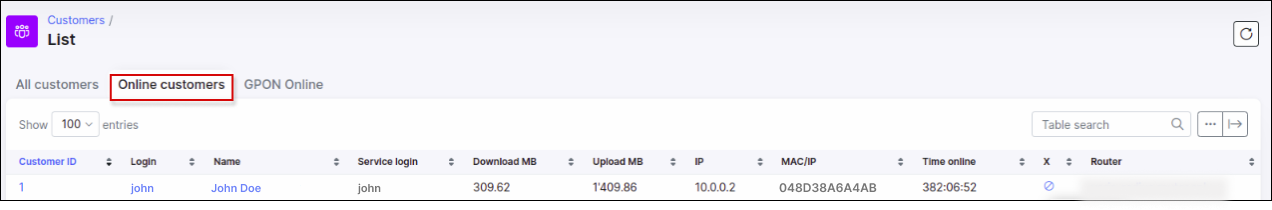

Add customer to online after login

Restart the Radius Daemon with the Restart radius button at the bottom of the page under Radius Tools.

Restart radius

When a customer has a dynamic IP, the API blocking will not work and you will need to use a hack. Navigate to the DCHP server parameters on your Mikrotik router and set the Lease Time as 1 day(1d 00:00:00).

Lease time

Therafter, in Splynx, navigate Config → Networking → Radius and click on Load. In the Rate-Limit attributes, add the string "Session-Timeout = 86400" (equivalent to 24 hrs in seconds).

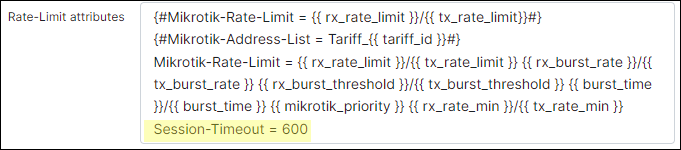

Seesion Timeout

Troubleshooting

Additional network issue
If you set additional network(s) in Splynx internet services, network routes will be sent to the router (NAS) during authorization. The router will then send all traffic with destination=additional network to the customer device. It is possible that these routes will also appear on the customer's device. To fix this issue, set use-framed-as-classless to no in the DHCP server settings.

Example:

 /ip dhcp-server set use-framed-as-classless=no [find name=dhcp1]
