Hook is a method of augmenting or altering the behavior of a page or application with custom callbacks. These callbacks may be maintained, modified, and managed by third-party users and developers who may not necessarily be affiliated with the originating application (Splynx). For example, we illustrate how to use hooks and send emails.

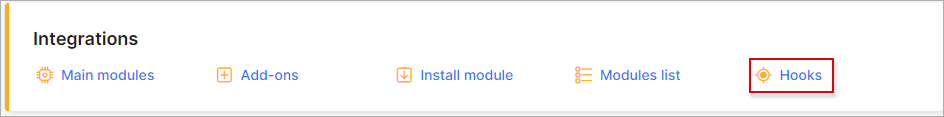

To send notifications on a particular action from Splynx, you can use hooks (Config → Integrations → Hooks).


First of all, you have to know how hooks work. "Hooks" are listening to an event you've selected, and if the event is executed, it runs a script you wrote in the "path"-field. By the way, a hook can send data-array that calls this event. Let's create a new hook:

Edit hook

Before creating a hook you have to put a php-script into the home folder, and give it permissions 755:

chmod 755 script-file.php


Thereafter, a simple script should be created - to send an email notification. Of course, you can use your own script to execute another action.




/* * don`t edit this block !!!! */
// Define STDIN
defined('STDIN') OR define('STDIN', fopen('php://stdin', 'r'));

// Get all data. Its is in JSON so we must decode it
$data = fgets(STDIN);

// Decode JSON
$data = json_decode($data, true);

/* * to send email edit this block */
$model = print_r($data,1); //print data-array
//send email
$to  = "mail_box_to@semple.com" ;                       //set your email
$subject = "Splynx test send-mailer";
$message = "{$model} \n Customer \"{$data['attributes']['name']}\" was created {$data['date']} by {$data['source']}";
$headers = "From: Admin <mail_box_from@semple.com>\r\n";

mail($to, $subject, $message, $headers);

So, when a new customer is created, we will receive an email:

image To send emails, we used the mail-server : Sendmail, and by default, it sends emails in the local-network only. Therefor, if you want to send an email to external addresses, you have to reconfigure the sendmail. Run the command to achieve this

sudo dpkg-reconfigure exim4-config

The following manual can be used as a guide - https://www.digitalocean.com/community/tutorials/how-to-install-the-send-only-mail-server-exim-on-ubuntu-12-04

Custom named queues

image Starting from Splynx v2.0, you can use custom named queues. To achieve this, select the hook type "Queue" and enter your queue name.

The following PHP script (based on BunnyPHP) can be used as an example to work with messages from custom named queues:


use Bunny\Channel;
use Bunny\Async\Client;
use Bunny\Message;
use React\EventLoop\Factory;

require '../vendor/autoload.php';

$connectOptions = [
 'host' => '',
 'port' => 5672,
 'vhost' => '/',
 'user' => 'guest',
 'password' => 'guest',

$loop = Factory::create();
(new Client($loop))->connect()->then(function (Client $client) {
 return $client->channel();
})->then(function (Channel $channel) {
 return $channel->queueDeclare('hooks2', false, true, false, false)->then(function () use ($channel) {
 return $channel;
})->then(function (Channel $channel) {
 echo ' [*] Waiting for messages. To exit press CTRL+C', "\n";
 function (Message $message, Channel $channel, Client $client) {
 echo " [x] Received ", $message->content, "\n";

image You need to use the same parameters when declaring a queue as in the example because this parameters uses Splynx when adding a message to RabbitMQ.

You will get a string like this: {"type":"","call":"","data":{"source":"admin","model":"models\\admin\\administration\\Locations","action":"get_list","date":"2017-09-20","time":"14:38:12","administrator_id":"1","customer_id":null,"result":"success","attributes":{"id":null,"name":null},"attributes_additional":[],"changed_attributes":null,"extra":null,"errors":null,"ip":""}}

Use function json_decode to decode it and use received data for your purposes.


Webhooks allow you to build external Apps which subscribe to certain events on the Splynx system. When one of those events are triggered, we'll send a HTTP POST payload to the webhook's configured URL.


When configuring a webhook, you can choose which events you would like to receive payloads for.

Handle webhook events

To validate an event you need to check the header X-Splynx-Signature, which contains the event signature. Signatures are generated from the response body string using the sha1 hash function and the secret as the HMAC key.

Example PHP webhook handler


define('REQUEST_TYPE_PING', 'ping');
define('REQUEST_TYPE_EVENT', 'event');
define('CONTENT_TYPE_JSON', 'application/json');
define('CONTENT_TYPE_FORM_URLENCODED', 'application/x-www-form-urlencoded');

$headers = getHeaders();
$input = file_get_contents('php://input');
$contentType = isset($headers['Content-Type']) ? $headers['Content-Type'] : '';

// Parse payload data
if ($contentType == CONTENT_TYPE_JSON) {
    $postData = json_decode($input, true);
} else {
    parse_str($input, $postData);

$requestType = isset($postData['type']) ? $postData['type'] : null;

// Process ping request
if ($requestType === REQUEST_TYPE_PING) {

// Validate request type
if ($requestType !== REQUEST_TYPE_EVENT) {
    exit('Invalid request type!');

// Calculate signature from payload and secret
$secret = 'your secret';
$calculatedSignature = hash_hmac('sha1', $input, $secret);

// Signature from HTTP request header
$inputSignature = isset($headers['X-Splynx-Signature']) ? $headers['X-Splynx-Signature'] : '';

// Compare signatures
if (hash_equals($inputSignature, $calculatedSignature)) {
    echo 'ok';

    // Success, you can process event as you want
    // ...
} else {
    // Invalid signature, return from code

// Specific PHP function for safe getting HTTP headers
function getHeaders()
    $headers = [];

    if (function_exists('getallheaders')) {
        $headers = getallheaders();
    } elseif (function_exists('http_get_request_headers')) {
        $headers = http_get_request_headers();
    } else {
        foreach ($_SERVER as $name => $value) {
            if (strncmp($name, 'HTTP_', 5) === 0) {
                $name = str_replace(' ', '-', ucwords(strtolower(str_replace('_', ' ', substr($name, 5)))));
                $headers[$name] = $value;

    return $headers;
